Article: Differences Between Superchargers And Turbochargers

As y’all (how’d that word choice go over?  Not cute or clever?  Noted.) know, I have a varied base of interests ranging from Ronald Reagan to John Wayne.  Somewhere in between those two is the recreational sport of motoring.  You may laugh, but I was a mechanical engineer in another life and the mechanics of cars thrill me with inexhaustible delight.  My first car was something of a bête noire and since that thing coasted into my driveway, planes, trains, and automobiles have continued to tug on my heartstrings.  Anyway, here’s an article from Pro Car Mechanics on the Differences Between Superchargers and Turbocharges for all the petrolheads in the audience:

There is quite a bit of terminology when it comes to automobile parts, and a person can get very easily confused. Some of the things that are bantered about may sound very appealing, but may not be what a car buyer wants in his or her vehicle. Understanding differences between various components helps to make a better decision. Superchargers and turbochargers are mentioned almost in the same breath by many people in the auto industry. There is definitely a difference between the two of them.

Either one will deal with power. Turbochargers and superchargers are known as forced induction systems. It means that either will compress the air flowing into the engine, which provides more power to the car. This creates a considerable amount of boost, which can be as much as 50% more power into the engine. This makes a luxury car or high-end sports car roar like a lion whenever the owner is tired of the engine purring like a kitten. A main difference between the turbocharger and the supercharger lies in the power supply.

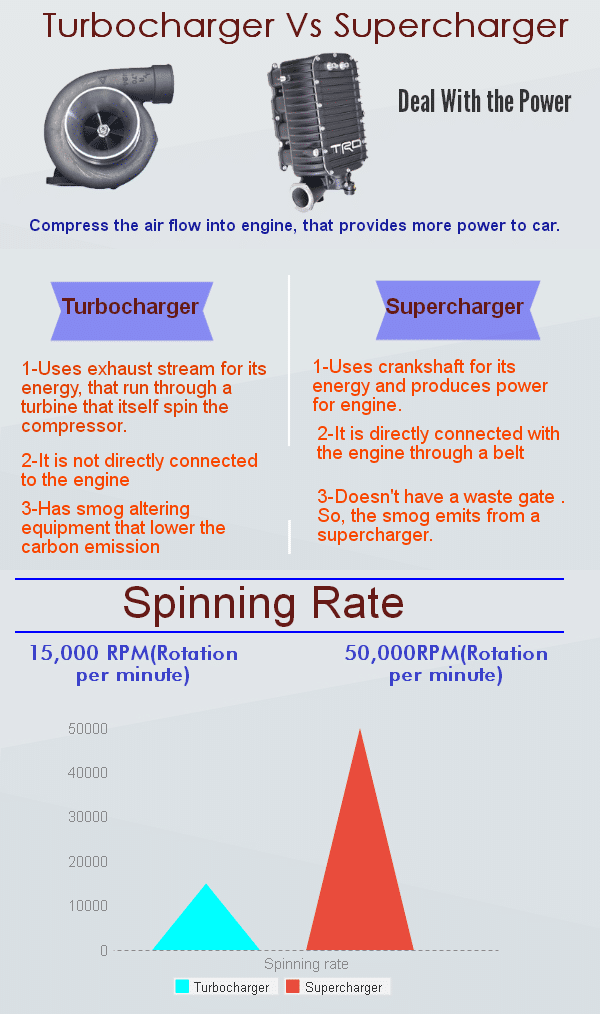

A turbocharger uses the exhaust stream for its energy. The exhaust will run through a turbine that will itself spin the compressor. The turbine spinning can be as much 150,000 RPM (Rotations Per Minute). To put that in layman’s terms, the turbocharger is able to have an RPM speed that can be almost 30 times faster than an ordinary automobile engine. It does take a little while for the turbine to produce the boost, and can result in the car lunging forward when the turbocharger kicks into action. The size of the turbocharger can impact power with a smaller one producing more boost faster. A turbocharger is particularly effective at high altitudes where other engines experience difficulty. Because the air is less dense a normal engine gets a smaller amount of air. Turbocharged engines do not suffer a dramatic reduction in power since the turbocharger is more capable of pumping thinner air.

The source of the power for the supercharger is in a belt connected directly to the engine. A supercharger will compress air of the atmospheric pressure, and create the boost by forcing air into the engine. The supercharger can add as much as 46% more horsepower because the increased air will allow more fuel to be added to the combustion charge. Like the turbocharger, a supercharger will do well in high-altitude.

Looking at the difference between the two the supercharger will take its power from the crankshaft whereas the turbocharger will draw power from exhaust gases that result from combustion. Superchargers will spin with speeds up to 50,000 RPM. The turbocharger is not connected to the engine and can spin much faster. Both will produce large amounts of power. A supercharger doesn’t have a waste gate, which means that smog will emit from a supercharger. Turbochargers on the other hand have smog altering equipment to lower the carbon emission of discharges. Turbochargers will run extremely hot and must be well insulated.

In deciding on which is better will depend on the vehicle itself. The reason why turbochargers are used most commonly in Europe is because the engines are small and four cylinders are standard. Superchargers can deliver their boost at lower RPMs then a turbocharger, whereas the turbocharger works best at high engine speeds.Turbochargers are quieter and superchargers are more reliable. Superchargers are easier to maintain than the complex turbocharger.

The arguments can go on back and forth. It would be great if a supercharger was in the car so that the boost could occur at low RPMs, while a turbocharger would put considerable power at a higher rotation. Volkswagen has attempted that with a twin charger engine. Besides being very expensive, the twin charger engine also only operates with premium gasoline. Determining which is better comes down to the make of the car itself. Incidentally, both are just about the same in price so money is not an issue. A regular car would do better with a supercharger. These are easier to install and tune-ups are not as difficult. The Turbo charger has its real niche in more specialized markets. It is considered more efficient overall than a supercharger. The consumer is left with deciding personally the type of car to own at from that point installing the correct forced induction system to add more power to the drive.


One thought on “Article: Differences Between Superchargers And Turbochargers

Add yours

  1. You know DD, I really appreciate what you’re doing for the internet and for this country. Really, really great. Truly terrific. But I noticed the RPM count for the turbochargers on the diagram isn’t accurate. Really disappointing. People aren’t happy about it. Sad.
